Grail Tutorial - Loading, Saving and Inspecting Grammars

Once you have installed Grail, you are ready run it, by typing g3 (prefixed by the installation directory if this is necessary on your system) and to test some grammars.

The Main Window

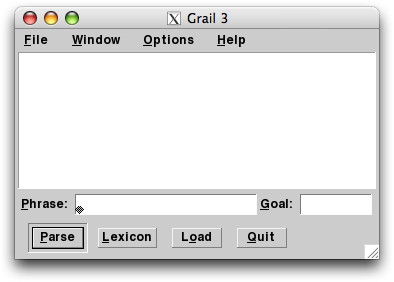

The Grail main window The Grail main window should look as shown in the figure, though depending on your operating system, there may be some slight differences, which will not affect our discussion.

The menu bar at the top of the window contains the [File], [Window], [Options] and [Help] menus. By convention, this tutorial will refer to the selection of a menu item by indicating [Menu] or [Menu/Submenu] in the text. For example, [Help/About This Grammar...] means selecting the About This Grammar... submenu of the [Help] menu.

The white rectangular are below the menu bar will contain the example phrases for a given grammar, once a grammar is loaded.

Below the example phrases area is the sentence input area. It allows you to enter a new sentence and goal formula.

Finally, at the bottom of the window there are four buttons for frequently used actions: [Parse], for parsing the current sentence in the sentence input area, [Lexicon], for opening the lexicon window, [Load], for loading a grammar, and [Quit], for exiting Grail.

The Graphviz Window

The GraphViz Graph Visualisation Window You can open a new gv window by selecting [Window/Postscript Window] from the Grail menu bar. The Graphviz window will be updated to reflect the current status of lexical entries and, during parsing, to reflect the current status of the parse.

For the moment, if Graphviz and gv have been correctly installed, the Graphviz window will just display a simple welcome message.

Macintosh users may prefer to use Pixelglow's excellent front end to the Graphviz package. In case you do so, manually open Graphviz and from the Graphviz application, select [File/Open...] to open the file tmp.dot in your current directory.

If you use other software which can directly portray Graphviz files, follow the same strategy. Open the file tmp.dot from this software. If you use other software to display the graphs, it is highly recommended that you choose software which updates the display whenever the displayed file is changed, since Grail will change the file tmp.dot (and the corresponding postscript file tmp.ps) rather frequently.

The File Menu

The set of grammar files grammars.tgz contains the example grammars which are used in this tutorial. Extract them with tar xvfz grammars.tgz if you haven't done so already.

We can load and save grammars by using the [File] menu. [File/Load Grammar...] (or, equivalently, the load command button at the bottom of the window) opens up a file selection dialog window which allows you to pick a grammar file which will be loaded into Grail. Enter the grammars directory which contains the example grammars and select the grail0.pl grammar.

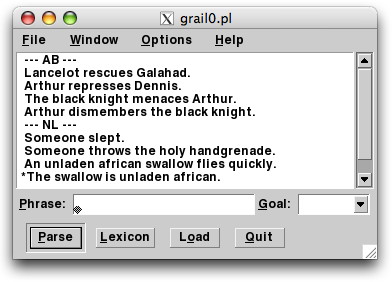

The main window will change and look as shown in the figure. The Grail main window after loading the
grammar grail0.pl The sentence input area now contains the example sentences of the grail0.pl grammar. The entries starting with --- are comments about the type of sentences which follows them and will not be parsed.

If you prefer editing your grammars in your own favorite editor, which is recommended when you have a bit of experience with Grail and Grail grammars, you can open the file grail0.pl in your editor. A later section will explain this is more detail.

Once a grammar has been edited manually, you can select [File/Reload Grammar] to load this grammar file into Grail.

When you are editing a grammar using Grail's editing facilities, you can save the edited grammar using [File/Save Grammar...] it is recommended for this tutorial not to overwrite the grammar files and to select a new filename when saving a grammar.

Finally, [File/Quit] (or, equivalently, the [Quit] button) exits Grail. Don't forget to save your grammar if you made any changes to it, since Grail will assume you are an adult and won't ask you for a confirmation when you select quit.

Inspecting the Grammar

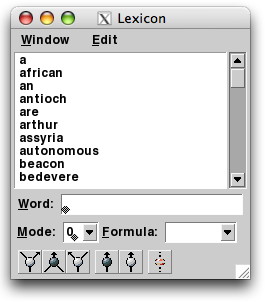

The Grail lexicon window for grammar grail0.pl By clicking the [Lexicon] button (or by selecting [Window/Lexicon Window] for the menu bar), the lexicon window will open. The figure shows the lexicon window for the current grail0.pl grammar. The lexicon window has a menu bar at the top. Below the menu bar there is a list of the words in the lexicon, in alphabetic order. The bottom part of the lexicon window contains the facilities for editing lexical entries which will be explained in a later section.

The lexicon window can be closed by selecting [Window/Close] from the menu bar of the lexicon window.

Grail assigns graphs to lexical entries. Click on an entry to see its assigned graph (or assigned graphs in case an word has multiple graphs assigned to it) in the Graphviz window. The <cursor up> and <cursor down> keys will move you to the next and previous lexical entry respectively. The meaning of these lexical graphs will be explained in the following sections.

As an alternative presentation of the lexicon, if you have pdfLaTeX and a pdf viewer installed on your system, as recommended by the installation instructions, you can select [Window/Lexicon Window (LaTeX/pdf)] to have a pdf viewer window open with a LaTeX representation of the lexicon. This may take a few seconds, depending on your system. Here, the formulas corresponding to the lexical graphs are shown. The correspondence is made explicit in one of the appendices. This option is unavailable when the configure script doesn't find either pdfLaTeX or a pdf previewer.

What's Next

Now that we've seen the basics of loading, saving and inspecting grammars, it's time to explain what we lexical graphs mean and how Grail uses them for parsing. This will be the subject of the next section.

If you are familiar with categorial grammars and want to know straight away how lexical formulas are converted into lexical graphs, your can read this in one of the appendices before continuing with the section on AB grammars.
