Architecture en pipeline : schémas

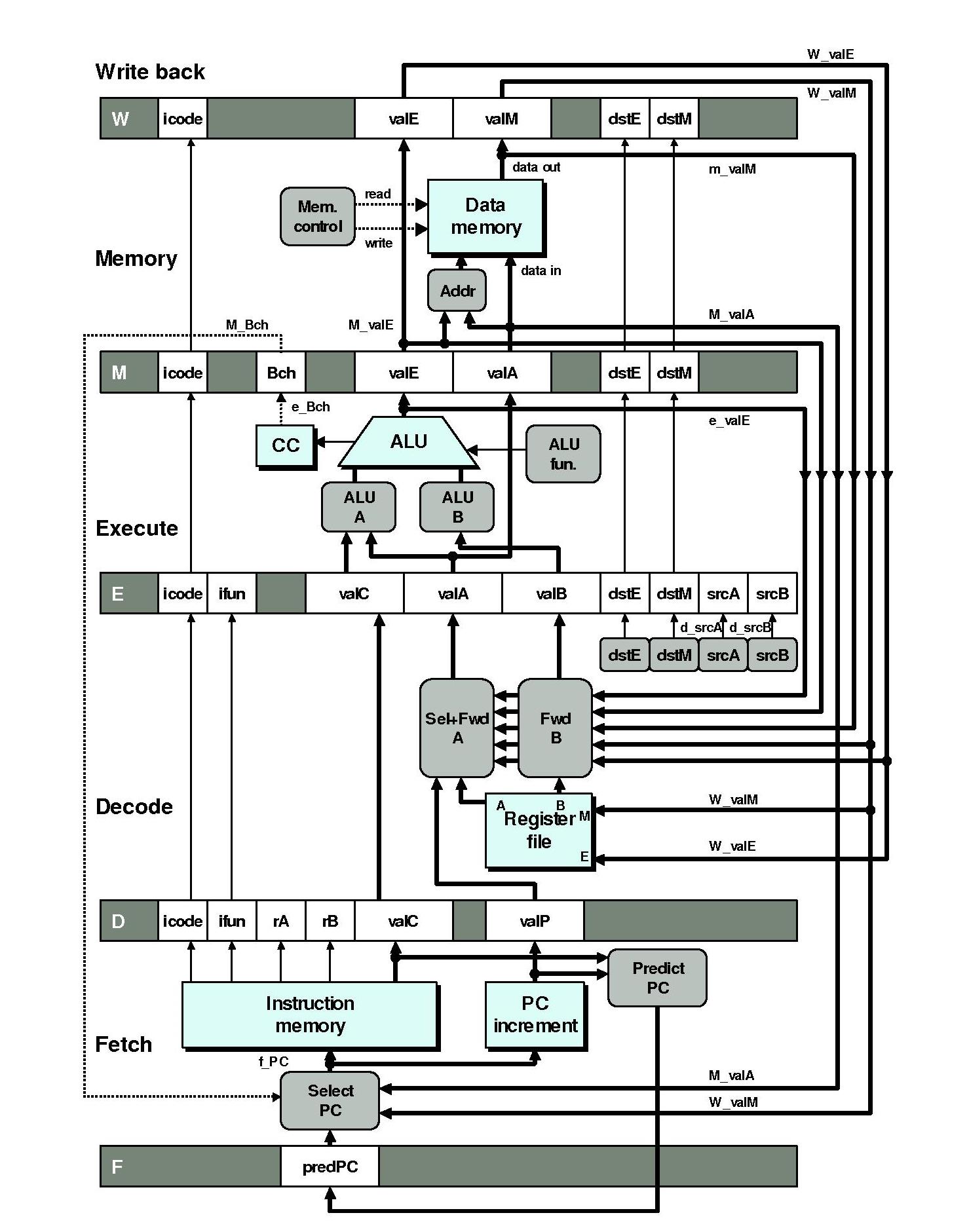

Structure générale

archi (218K)

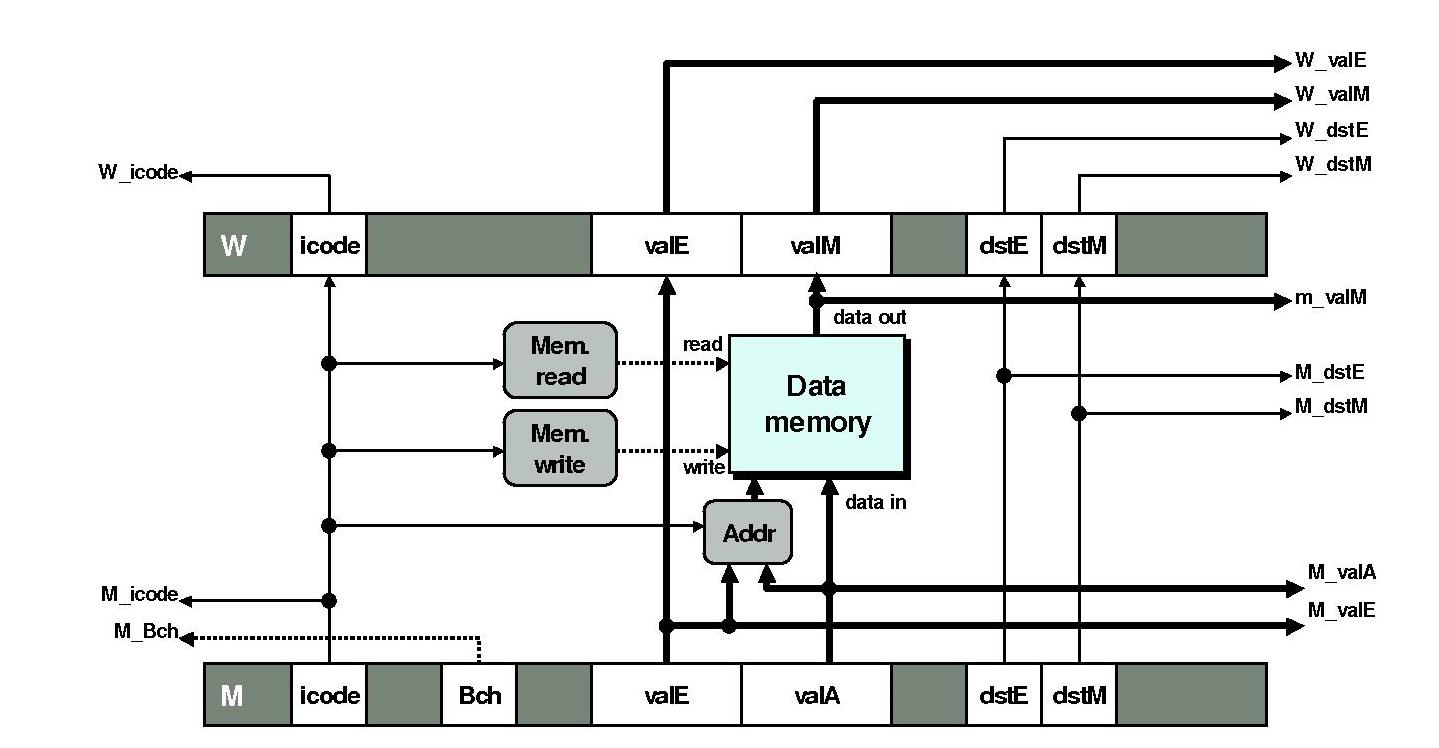

Etage Memory

memory (74K)

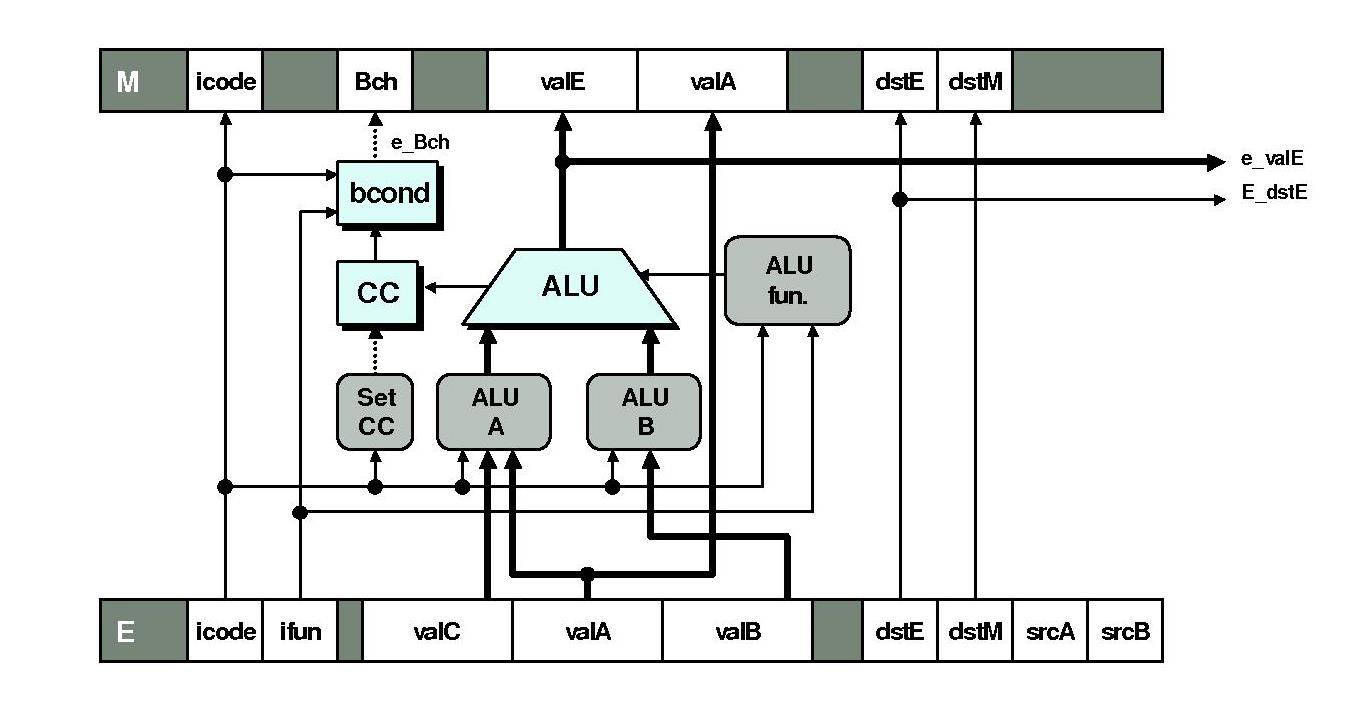

Etage Execute

execute (66K)
# Should I stall or inject a bubble into Pipeline Register E? # At most one of these can be true. bool E_stall = 0; bool E_bubble = # Mispredicted branch (E_icode == JXX && !e_Bch) || # Conditions for a load/use hazard E_dstM in { d_srcA, d_srcB};

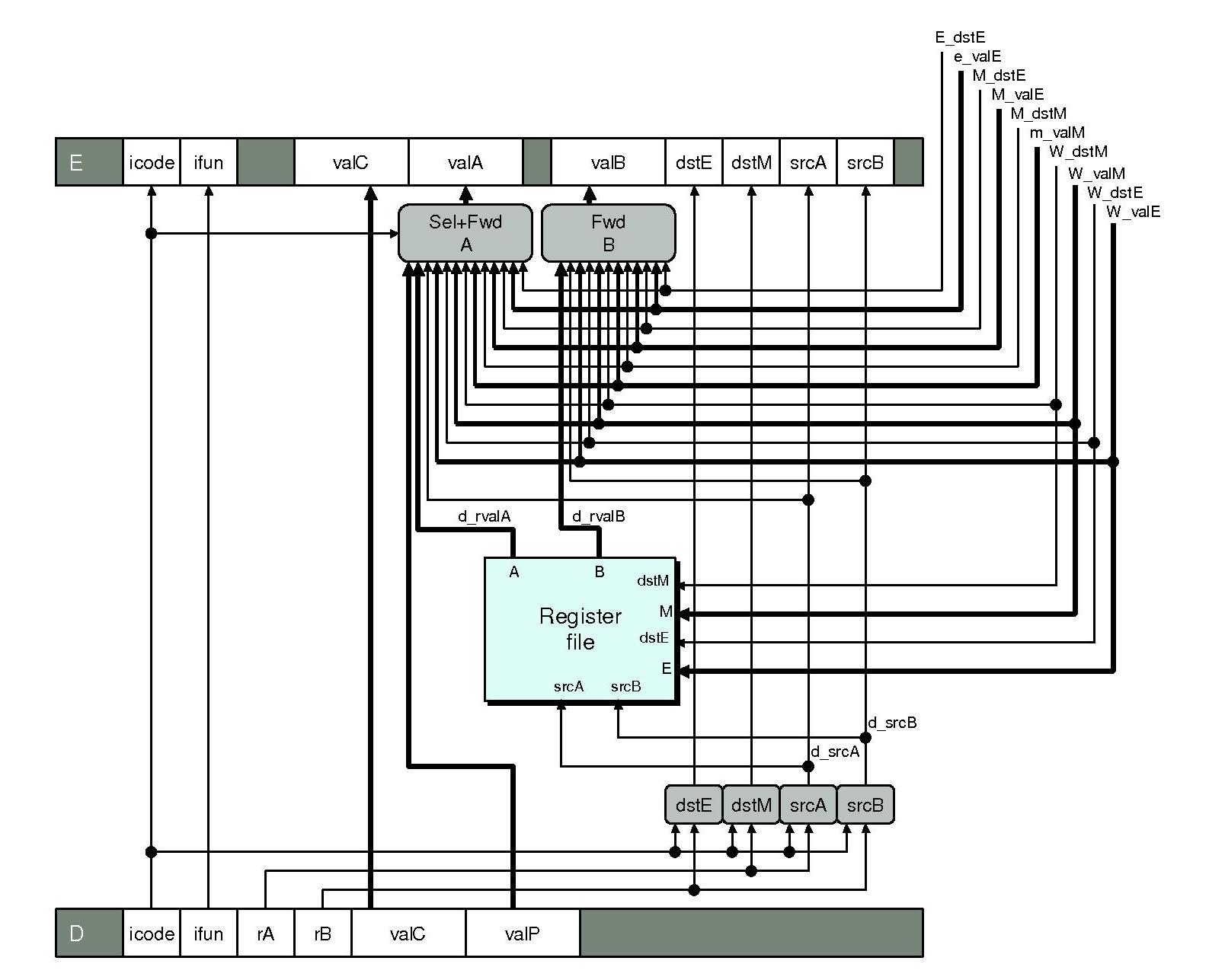

Etage Decode

decode (140K)
int new_E_valA = [ D_icode in { CALL, JXX } : D_valP; # Use incremented PC d_srcA == E_dstE : e_valE; # Forward valE from execute d_srcA == M_dstM : m_valM; # Forward valM from memory d_srcA == M_dstE : M_valE; # Forward valE from memory d_srcA == W_dstM : W_valM; # Forward valM from write back d_srcA == W_dstE : W_valE; # Forward valE from write back 1 : d_rvalA; # Use value read from register file ]; int new_E_valB = [ d_srcB == E_dstE : e_valE; # Forward valE from execute d_srcB == M_dstM : m_valM; # Forward valM from memory d_srcB == M_dstE : M_valE; # Forward valE from memory d_srcB == W_dstM : W_valM; # Forward valM from write back d_srcB == W_dstE : W_valE; # Forward valE from write back 1 : d_rvalB; # Use value read from register file ]; # Should I stall or inject a bubble into Pipeline Register D? # At most one of these can be true. bool D_stall = # Conditions for a load/use hazard E_dstM in { d_srcA, d_srcB }; bool D_bubble = # Mispredicted branch (E_icode == JXX && !e_Bch) || # Stalling at fetch while ret passes through pipeline # but not condition for a load/use hazard ! E_dstM in { d_srcA, d_srcB } && RET in { D_icode, E_icode, M_icode };

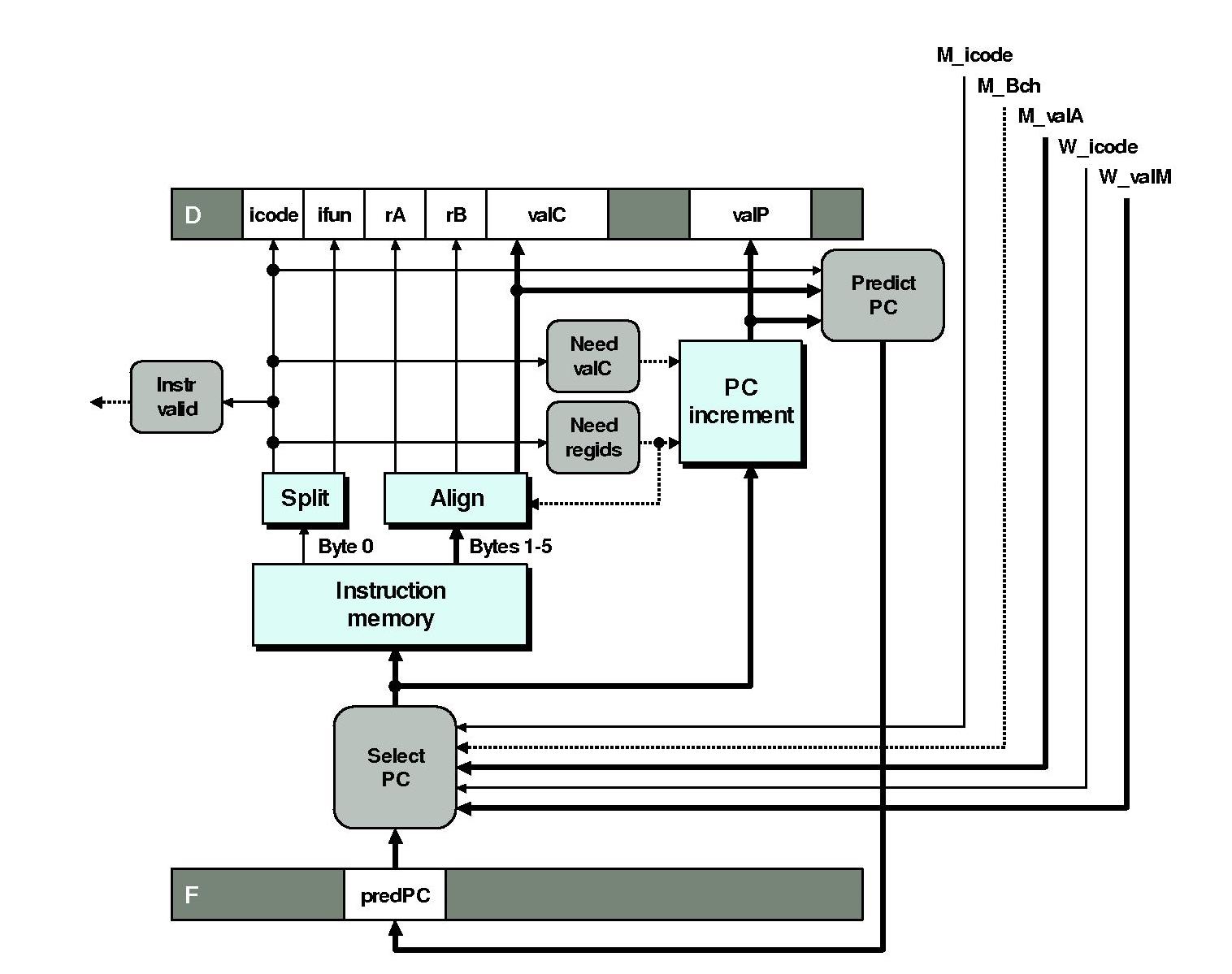

Etage Fetch

fetch (101K)
## What address should instruction be fetched at int f_pc = [ # Mispredicted branch. Fetch at incremented PC M_icode == JXX && !M_Bch : M_valA; # Completion of RET instruction. W_icode == RET : W_valM; # Default: Use predicted value of PC 1 : F_predPC; ]; # Predict next value of PC int new_F_predPC = [ f_icode in { JXX, CALL } : f_valC; 1 : f_valP; ]; # Should I stall or inject a bubble into Pipeline Register F? # At most one of these can be true. bool F_bubble = 0; bool F_stall = # Conditions for a load/use hazard E_dstM in { d_srcA, d_srcB } || # Stalling at fetch while ret passes through pipeline RET in { D_icode, E_icode, M_icode };
