Architecture Seq

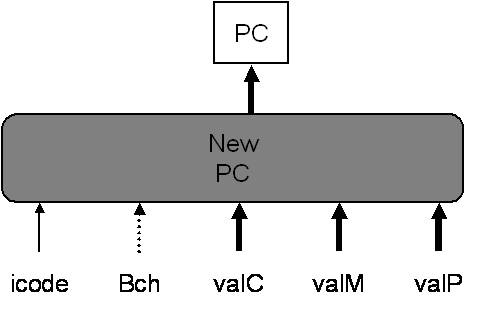

PC
int new_pc = [ # Call. Use instruction constant icode == ICALL : valC; # Taken branch. Use instruction constant icode == IJXX && Bch : valC; # Completion of RET instruction. Use value from stack icode == IRET : valM; # Default: Use incremented PC 1 : valP; ];

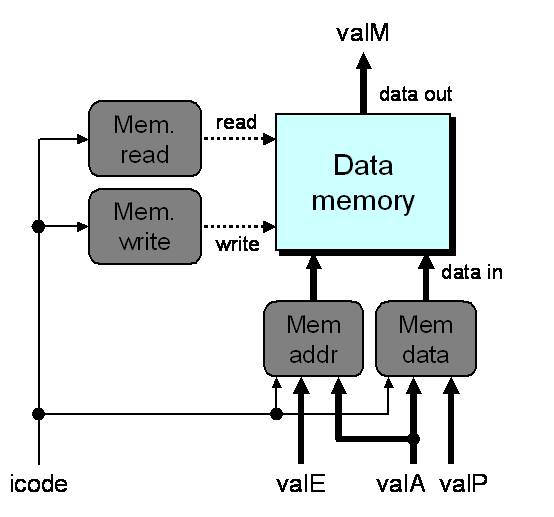

Memory
## Set read control signal bool mem_read = icode in { IMRMOVL, IPOPL, IRET }; ## Set write control signal bool mem_write = icode in { IRMMOVL, IPUSHL, ICALL }; ## Select memory address int mem_addr = [ icode in { IRMMOVL, IPUSHL, ICALL, IMRMOVL } : valE; icode in { IPOPL, IRET } : valA; # Other instructions don't need address ]; ## Select memory input data int mem_data = [ # Value from register icode in { IRMMOVL, IPUSHL } : valA; # Return PC icode == ICALL : valP; # Default: Don't write anything ];

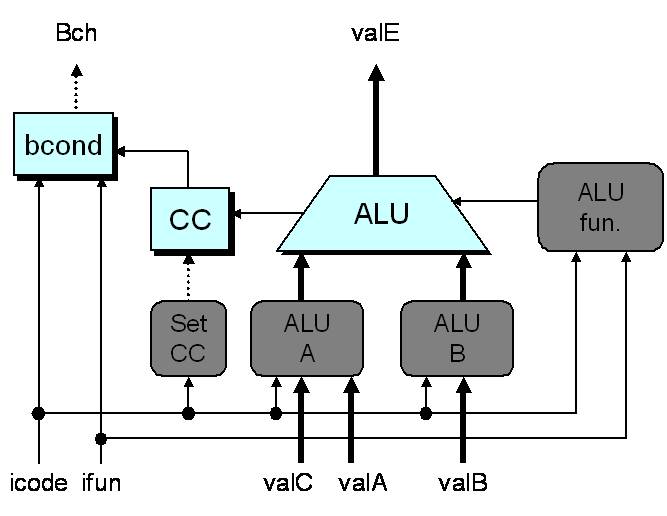

Execute
## Select input A to ALU int aluA = [ icode in { IRRMOVL, IOPL } : valA; icode in { IIRMOVL, IRMMOVL, IMRMOVL } : valC; icode in { ICALL, IPUSHL } : -4; icode in { IRET, IPOPL } : 4; # Other instructions don't need ALU ]; ## Select input B to ALU int aluB = [ icode in { IRMMOVL, IMRMOVL, IOPL, ICALL, IPUSHL, IRET, IPOPL } : valB; icode in { IRRMOVL, IIRMOVL } : 0; # Other instructions don't need ALU ]; ## Set the ALU function int alufun = [ icode == IOPL : ifun; 1 : ALUADD; ]; ## Should the condition codes be updated? bool set_cc = icode in { IOPL };

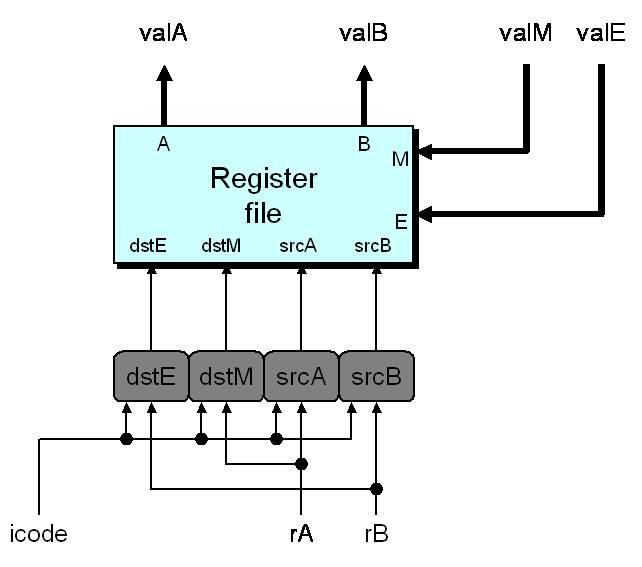

Decode
## What register should be used as the A source? int srcA = [ icode in { IRRMOVL, IRMMOVL, IOPL, IPUSHL } : rA; icode in { IPOPL, IRET } : RESP; 1 : RNONE; # Don't need register ]; ## What register should be used as the B source? int srcB = [ icode in { IOPL, IRMMOVL, IMRMOVL } : rB; icode in { IPUSHL, IPOPL, ICALL, IRET } : RESP; 1 : RNONE; # Don't need register ]; ## What register should be used as the E destination? int dstE = [ icode in { IRRMOVL, IIRMOVL, IOPL} : rB; icode in { IPUSHL, IPOPL, ICALL, IRET } : RESP; 1 : RNONE; # Don't need register ]; ## What register should be used as the M destination? int dstM = [ icode in { IMRMOVL, IPOPL } : rA; 1 : RNONE; # Don't need register ];
