User's Guide to Grail 2.0
Richard Moot
Table of Contents
- Introduction
- Main Window
- Status Window
- Proof Net Window
- Rewrite Window
- Lexicon Window
- Postulate Window
- Analysis Window
1. Introduction
The Grail project is an automated deduction system for multimodal
categorial logics. It is developed as part of a PhD project at
UiL-OTS (Utrecht, The Netherlands).
The current version is the beta release of version 2.0. It has some minor
inconsistencies, and maybe even some, ahem, undocumented features.
Grail operates from a non-associative base logic, but allows you to plug
in user-defined structural postulates. It operates using a combination of
labeled deduction and proof nets as described in [Moortgat97], but can produce output in the more familiar natural deduction
format.
2. The Main Window

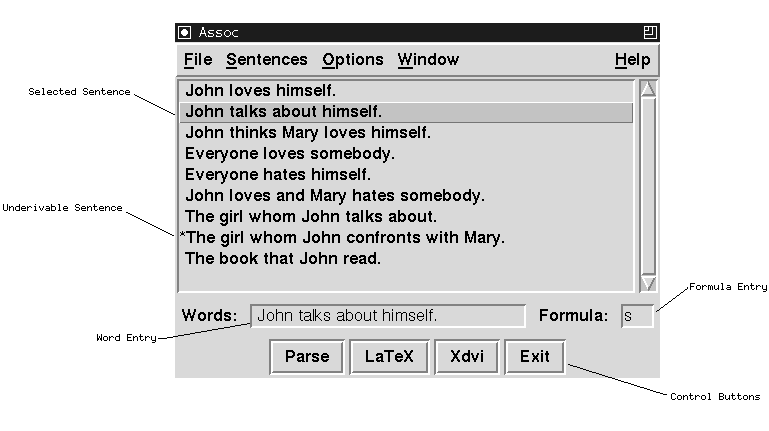

The main window is your interface to the theorem prover. From here you
can parse grammatical expressions, load and save grammar fragments,
and open other windows to view and edit these fragments.
The window will display a list of previously parsed sentences for
the current fragment, and an input section where you can enter new
expressions.
Clicking on one of the sentences will display the words in the word
entry section, and the goal formula in the formula entry section. You
can edit the words and the formula, and parse the sentence by pressing
(Enter) or the [Parse] button. Double clicking one of the sentences will
parse it immediately.
When parsing, a status window will appear which gives an indication of
the computations being performed, and when ready will display either
`done' or `failed' depending on whether a proof was found. The [Abort]
button cancels the computation when you run out of patience.
Command Buttons below the entry sections you will find the
following command buttons:
- [Parse] Parses the words in the input entry as a
formula described in the formula entry. The output is sent to LaTeX.
- [LaTeX] Sends the results of the previous parse to
LaTeX ; this is useful if you have changed some of the output options.
- [Xdvi] Sends the result of the previous parse to LaTeX
and displays them using the xdvi previewer.
- [Exit] Exits the program.
Menu Bar from the menu bar of the main window, you can
access the following operations:
- [File]
- [About] Prints information on the release date and
version number.
- [New Fragment] Starts a new grammar fragment from
scratch. All previous information will be lost.
- [Consult Fragment...] Loads a grammar fragment.
- [Save Fragment...] Saves your fragment.
- [Compile Prolog Source...] Compiles a Prolog file.
- [Close] Iconifies the main window.
- [Quit...] Hasta la vista, baby.
- [Sentences]
- [Clear Entry] Erases the words and formula.
- [Parse] Parses the selected sentence.
- [Delete] Deletes the selected sentence from the
sentence list.
- [Options]
- [Prolog Messages] A choice between Quiet and
Verbose. When set to Quiet, only some information about the time a
computation takes will be sent to screen. When set to Verbose, a lot
more information about the state of the computation will be
printed. Defaults to Quiet.
- [LaTeX Output Format] A choice between no output,
Prawitz style natural deduction and Fitch style natural
deduction. Defaults to Prawitz.
- [Proofs]
- [Eta Long Proofs] When this checkbutton is on, eta long
natural deduction proofs will be produced. Defaults to off.
- [Hypothesis Scope] When this checkbutton is on, the scope
of a hypothesis in Fitch style natural deduction will be
indicated by a vertical bar. Defaults to on.
- [Labels]
- [Output Labels] When this checkbutton is on, labeled
deduction proofs will be produced. Defaults to on.
- [Implicit Structural Rules] Structural rule applications
will be hidden.
- [Collapsed Structural Rules] Successions of multiple
structural rules will be collapsed into one.
- [Explicit Structural Rules] Each structural rule is
portrayed explicitly. This is the default setting.
- [Formulas]
- [Reduce Macros] When this checkbutton is on, complex
formulas will be reduced by the macro definitions. Defaults to off.
- [Semantics]
- [Output Semantics] When this checkbutton is on, lambda
term semantics will be printed with the formulas. Defaults to off.
- [Reduce Semantics] When this checkbutton is on, lambda
term reductions will be performed whenever possible. Defaults to
off.
- [Substitute Lexical Semantics] Formulas will be assigned
their lexical meaning recipes instead of semantic variables. Defaults to off.
- [Semantics For Unary Connectives] When this checkbutton is
off, the semantic constructors for the unary connectives will be
ignored. Defaults to on.
- [Save Current Options] Save the current options as
default options to the file `.grail_default_options' in the user's home directory.
- [Restore Default Options] Return the output options to
their default state.
- [Window]
- [Status/Proof Net Window] Opens the status or proof
net window, depending on whether debugging is turned on or
off. See Section 3 and Section 4
- [Rewrite Window] Opens the rewrite window, only
available when debugging is turned on. See Section 5.
- [Lexicon Window] Opens the lexicon window. See Section 6.
- [Postulate Window] Opens the postulate window. See Section 7.
- [Analysis Window] Opens the analysis window. See
Section 8.
- [Help]
- [On This Window] Gives a help message.
3. The Status Window

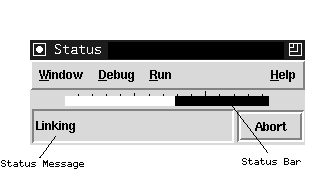

The status window gives information about the current state of the
computation, and allows you to abort time-consuming parses. It will
open automatically during proof search, or you can open it by
selecting [Window/Status Window] or by typing (Control-s).
The white part of the status bar gives an estimate of the number of
links which have not been tried yet.
The status message can be one of the following:
- Initializing Garbage collecting, preprocessing.
- Linking Performing axiom links.
- Rewriting Performing label conversions.
- Generating Output Generating LaTeX output, and sending
it to a file.
- Done Computation terminated, one or more derivations were found.
- Failed Computation terminated, no derivations were found.
- Aborted User got bored and pressed the [Abort] button. If
derivations were found, they can still be viewed.
Menu Bar From the menu bar, we can select the following:
- [Window]
- [Close] Iconifies this window.
- [Debug]
- [Automatic] Debugging off. Grail will search for proofs
without user guidance.
- [Interactive] Switches on the interactive debugger.
4. The Proof Net Window

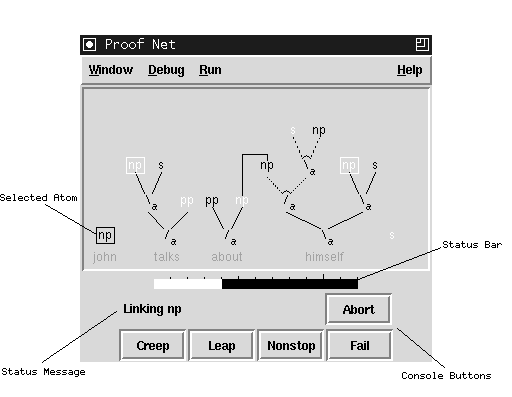

When the interactive debugger is on, the status window will be
replaced by the proof net window. In the proof net window we see the
current partial proof structure, with the decomposition trees of the
formulas the current lookup assigns to the words from the sentence above the
corresponding word. Positive atomic formulas drawn in white and negative atomic
formulas drawn in black. Here atomic formulas of opposite polarity are
linked until we find a proof structure which is both acyclic and
connected.
The console buttons offer the following options
- [Creep] Will perform the next step in the computation,
then wait for interaction.
- [Leap] Will return after a total linking for the current
lookup has been found or to the next lookup if no such linking exists.
- [Nonstop] Will perform the rest of the proof search
automatically.
- [Fail] Will abandon the current branch of the search space
and continue with the next untried branch.
- [Abort] Aborts the current proof attempt.
In addition, you can click on the atomic formulas themselves to have
complete control over the order in which the axioms are linked. As a
first step you select any atom not currently linked by an axiom link.
The selected formula will then appear in a black box and the atoms of
opposite polarity which have not been tried before will appear in a
white box, as shown the figure above. You can then click any
of the boxed formulas to perform an axiom link.
If at any time you perform a link which results in a cyclic or
disconnected proof structure, you will get a message and the current
link will fail.
Menu Bar For the menu bar, we can select the following:
- [Window]
- [Save Postscript] Saves the current (partial) proof
structure to a postscript file.
- [Close] Iconifies this window.
- [Debug]
- [Automatic] Debugging off. Grail will search for proofs
without user guidance.
- [Interactive] Switches on the interactive debugger.
- [Run] Setting this option to [Nonstop] will cause Grail
perform all axiom links without user interaction. Defaults to [Creep].
5. The Rewrite Window
When the interactive debugger is on, you can open the rewrite window by selecting
[Window/Rewrite Window] or by typing (Control-r).

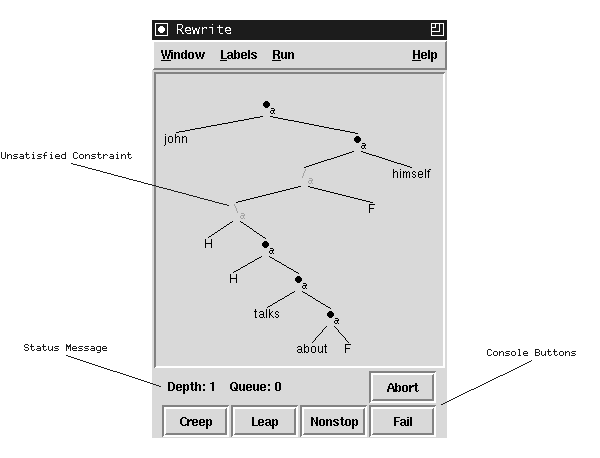

The rewrite window above displays the current label
and allows you to perform rewrite operations on this label. Clicking
on a node of the label will cause a pop-up menu with the label
conversions rooted at that node to appear. You can apply a conversion
by selecting it from the menu. Any alternatives to your choice will
be added to the queue.
The status message gives you an indication of the number of unvisited
labels in the queue and of the current depth.

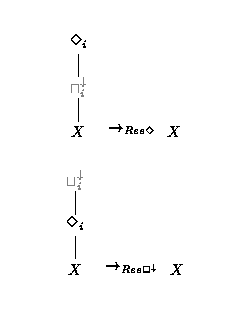

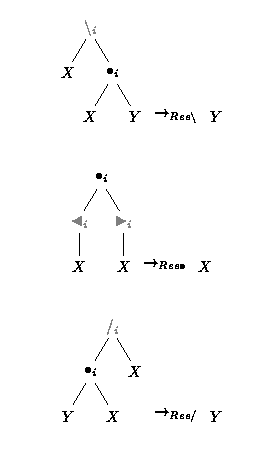

As shown in the figure, some label constructors are drawn in dark
grey. These correspond to unsatisfied constraints, which are checked
by the following label conversions
For the non-associative base logic, these are all available
conversions. However, you can relax the constraints by specifying your
own structural postulates as specified in Section 8. Each
structural postulate can be applied backwards as a label conversion.
You can rewrite a label until you reach one where all constraints have
been satisfied and the words are in the order required by the input
sentence. Grail will only check if you meet these conditions when you
press the [Creep] or [Leap] button in order to allow you to continue
rewriting a label even if all constraints have been satisfied.
The console buttons offer the following options
- [Creep] Will add all one step conversions from the current
label to the back of the queue, then continue with the first element
of the queue.
- [Leap] Will return only after all label constraints have
been satisfied.
- [Nonstop] Will perform the rest of the proof search
automatically.
- [Fail] Will abandon the current branch of the search space
and continue with the next item on the queue.
- [Abort] Aborts the current proof attempt.
Menu Bar For the menu bar, we can select the following:
- [Window]
- [Postulate Window] Opens the postulate window.
- [Save Postscript] Saves the current label to a postscript file.
- [Close] Closes this window.
- [Labels]
- [No Eager Evaluation] Will prevent Grail from doing any
early failure on label conditions.
- [Automatic Eager Evaluation] Will cause Grail to perform
automatic eager label conversions. This is the default.
- [Manual Eager Evaluation] Will allow the user to perform
eager label conversions himself. Be careful, as careless eager
conversions may prevent solutions from being found.
- [Run] Setting this option to [Nonstop] will cause Grail
perform all label conversions without user interaction. Defaults to [Creep].
6. The Lexicon Window

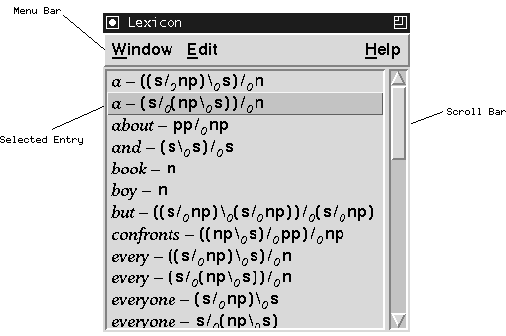

You can open the lexicon window from the menu bar in the main window
by selecting [Window/Lexicon Window], or by typing (Control-l).
The lexicon window displays a list of the words
in the fragment and of the formulas assigned to them. From here you
can edit, delete or enter new lexical entries.
Clicking an entry will select it, indicated by the
selection bar. The next edit or delete command will then be applied to
that entry.
Double-clicking one of the entries will open the edit lexical entry
window, with that entry displayed in it (see Section 6.1
for more on the editing of lexical entries).
Clicking one of the entries with the (Control) key depressed will
delete it.
Menu Bar from the menu bar of the lexicon window the
following operations are available:
- [Window]
- [Close] Closes the lexicon window.
- [Edit]
- [New Entry] Opens the edit entry window.
- [Edit Entry] Shows the selected lexical entry in the edit
entry window.
- [Delete Entry] Deletes the selected lexical entry.
- [Help]
- [On This Window] Gives a help message.
6.1 Editing a Lexical Entry

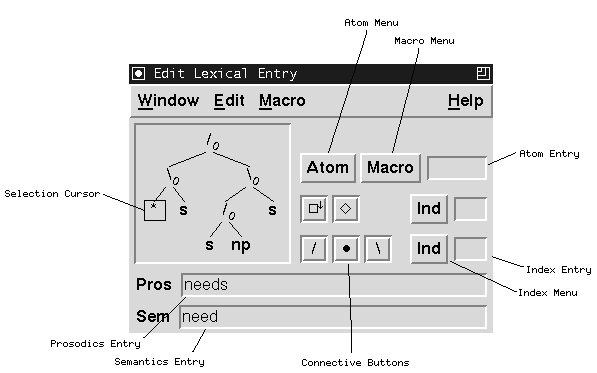

The edit entry window is where you modify
existing entries in the lexicon or create new entries from
scratch. You can open the edit entry window by selecting [Edit/New Entry] or [Edit/Edit Entry] from the lexicon window.
The edits you perform here will only be stored in the lexicon when you
press (Control-s) or select [Edit/Store Entry] from the menu
bar, so you don't have to worry about accidentally modifying your
lexicon.
A lexical entry consists of three parts: prosodics, a syntactic
formula and semantics.
Formula
The formula edit fields take up the upper section of the window.
Selection
The formula is displayed as its construction tree. You can select a
part of the formula by clicking on it. The selection cursor appears as
a box surrounding the root of the selected tree.
Insertion Points A special constant `*' functions as an insertion point in the
formula. It is not a part of the formula language. By pressing
(Control-k) the selected tree will be replaced by this constant, and
copied to the paste buffer.
When an insertion point is selected (as shown in the
figure above), you can insert something at that position in
one of the following ways:
- [Paste] Pressing (Control-y) will insert the contents of the
paste buffer to this position.
- [Atom] By clicking on the atom menu, you can insert one of the
atomic formulas found in this fragment. Alternately, you can type in
a new atom in the atom entry, followed by (Enter). Atoms should start
with a lower case letter, and be followed by and number of lower case
letters or _.
- [Macro] A very simple macro facility is provided, where you
can give a name to commonly occurring formulas. Selecting one of the
macros from the macro menu will insert it at the current position.
- [Constructor] You can insert a unary or binary constructor by
selecting an index from the index menu next to the buttons for these
constructors (or typing in a new index in the index entry next to
it) and pressing the button for the connective you wish to insert.
Prosodics
The prosodics of an entry is the way it will
appear in your expressions. You can enter a Prolog term in the
prosodics entry section. The current version does not support lexical
entries consisting of more than one word.
Semantics
You can give your lexical entry a Montague-style
meaning recipe in the semantics entry section. Editing the semantics
in the current version is very cumbersome, as it requires you to type
in the internal semantic representation. It is recommended you leave
the semantics field empty or type in a single constant. If you really

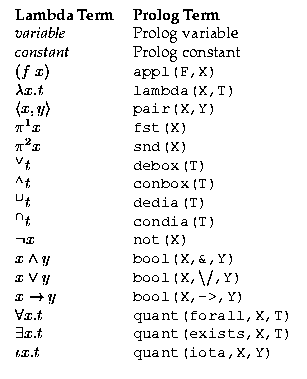

want to enter lambda term meaning recipes you can use the table below to convert lambda terms to Prolog terms.
Menu Bar In the edit lexical entry window, you can select
the following from the menu bar
- [Window]
- [Close] Closes this window.
- [Edit]
- [Clear Entry] Erases the formula, prosodics and
semantics fields.
- [Store Entry] Stores the current lexical entry in the
lexicon.
- [Cut] Cuts the current selection to the paste buffer.
- [Copy] Copies the current selection to the paste buffer.
- [Paste] Pastes the buffer to the current position.
- [Macro]
- [Store Entry As Macro] Stores the formula of the
current entry as a macro. The macro will take its name from the atom
entry field.
- [Store Selection As Macro] Stores the selection as a
macro. The macro will take its name from the atom entry field.
- [Help]
- [On This Window] Prints a help message.
7. The Postulate Window

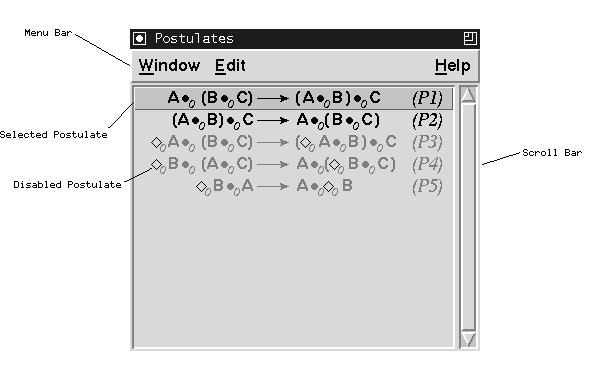

The postulate window displays the structural
postulates in the current fragment. From here you can delete or edit
structural postulates.
You can open the postulate window from the menu bar in the main window
by selecting [Window/Postulate Window], or by typing (Control-p).
Clicking on a postulate will select it. This will cause a
selection bar to appear over it, and allows you to perform the
operations in the edit menu on it.
Double clicking a postulate will display that postulate in the edit
postulate window.
Clicking a postulate with (Control) depressed will delete that
postulate.
Pressing mouse button 2 over a postulate will change the status of the
postulate from enabled to disabled or vice versa. This allows you to
experiment with the effects of structural postulates without having to
create several versions of the same fragment.
Menu Bar From the menu bar, the following options are available:
- [Window]
- [Close] Closes the postulate window.
- [Edit]
- [New Entry] Opens the edit entry window.
- [Edit Entry] Shows the selected structural postulate in the edit
postulate window.
- [Delete Entry] Deletes the selected structural postulate.
- [Disable/Enable Postulate] Toggles the selected
postulate between enabled and disabled.
- [Help]
- [On This Window] Gives a help message.
7.1 Editing a Postulate

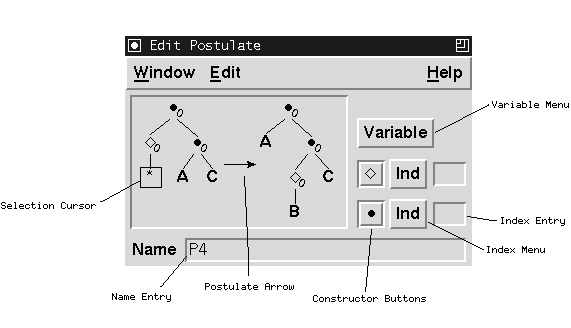

Editing a postulate is much like editing a formula. There is now a
formula on both the left and the right hand side of the postulate
arrow. Selection and cut/copy/paste can be performed as before.
Instead of atomic
formulas we now have structural variables, which can be inserted from
the variable menu, and our choice of constructors is limited to
and
.
Postulate Arrow
By clicking on the postulate arrow it will
change from
to
to
. This
makes it easier to store equivalences or inverses of postulates. In
the postulate window, all postulates will appear in their left to
right version regardless of the postulate arrow, so storing a
postulate
will in fact be the same as storing
both
and
.
Postulate Names
You can give a postulate any name which is
printable in LaTeX math mode.
Valid Postulates
The computational architecture poses some
limitations on the type of postulates allowed in your
fragments. Grail will report an error when you try to store postulates
of the following form:
- There are multiple occurrences of a variable on either side of
the postulate arrow.
- A variable occurs on only one side of the postulate arrow.
In addition, because of the backward chaining proof search strategy, a
warning will be generated when a postulate has more constructors on
the left hand side than on the right hand side. If you add one of
these postulates to your fragment, the proof search algorithm is not
guaranteed to terminate.
Menu Bar the menu bar allows you to access the following
functions:
- [Window]
- [Close] Closes the edit postulate window.
- [Edit]
- [Clear Postulate] Erases the postulate in this window.
- [Store Postulate] Stores the postulate in memory. It
will now appear in the postulate window.
- [Reverse Postulate] Swaps the left and right hand sides
of the postulate.
- [Cut] Deletes the selected part of the postulate, and
copies it to the paste buffer.
- [Copy] Copies the selected part of the postulate to the
paste buffer.
- [Paste] Pastes the contents of the buffer to the place
of the selected variable.
- [Help]
- [On This Window] Hmmm, what does this window do?
8. The Analysis Window

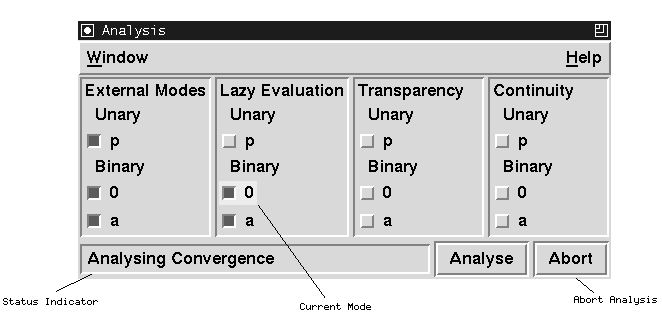

The analysis window is where you can improve
the performance of the theorem prover by setting the parameters for early
failure. This can be done either automatically or by hand.
External Modes
Sometimes you may want to prevent a mode from
occurring in the output, because it is used only as a grammar internal
or auxiliary mode. By default all modes will be external, but you can
set modes to internal by turning off their checkbutton here.
Lazy, Transparent and Continuous Modes
Three forms of early
failure are supported which apply only to structural postulates
satisfying some criteria. See [Moot 96] for descriptions of these
criteria. All can be detected by the program, and only the lazy
reductions test is expensive to compute. When the program suspects
checking for lazy reductions will take up an unreasonable amount of
time, you will get a choice to set these parameters to their default,
safe settings and only perform the other tests.
Menu Bar From the menu bar, the following options are available:
- [Window]
- [Close] Closes the analysis window.
- [Options]
- [Show Status] Gives a description of Grail's estimate of
the current analysis settings. This can be manual if the settings
were performed by the user, safe if performance is perhaps not
optimal but will not prevent solutions from being found,
optimal if a complete analysis has been performed on the current
postulates, or unknown if postulates were added after the last
analysis.
- [Analyse Postulates] Performs a complete analysis of the
postulate set.
- [Analyse Convergence] Will only check if the label
reductions converge for eager evaluation. This is generally
time-consuming.
- [Analyse Transparency] Will only check if word order
constraints can be applied eagerly.
- [Analyse Continuity] Will only check for which modes
continuity labeling applies.
- [Safe Settings] Switches off all early
failure.
Bibliography
Benthem, J. van, and A. ter Meulen
(eds.) Handbook of Logic and Language. Elsevier, 1997.
Danos, V. La Logique Linéaire Appliquée à l'étude de Divers
Processus de Normalisation (Principalement du Lambda-Calcul). Thèse
de Doctorat, Université de Paris VII, 1990.
Gabbay, D. Labeled Deductive Systems. Clarendon Press, Oxford, 1996.
Girard, J.Y. Linear Logic. Theoretical
Computer Science 50, 1987, pp. 1-102.
Moortgat, M. Categorial Type Logics.
Chapter 2 of the Handbook of Logic and
Language, 1997.
Moot, R. Proof Nets and Labeling for
Categorial Grammar Logics. MA Thesis, Utrecht University, 1996.
