ExtendedClusterOperation.h File Reference
#include <set>
#include <string>
#include <tulip/Node.h>
#include <tulip/Graph.h>
#include <tulip/GraphProperty.h>

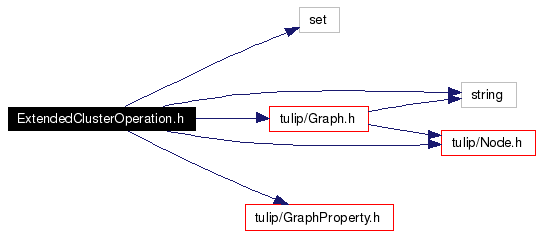

Include dependency graph for ExtendedClusterOperation.h:
This graph shows which files directly or indirectly include this file:
Namespaces
Functions
- TLP_SCOPE void openMetaNode (Graph *graph, node metaNode, Graph *groupUnderSubGraph, GraphProperty *metaGraphProperty)
- TLP_SCOPE void openMetaNode (Graph *graph, node n)
- TLP_SCOPE node createMetaNode (Graph *graph, std::set< node > &subGraph, Graph *groupUnderSubGraph, GraphProperty *metaInfo)
- TLP_SCOPE node createMetaNode (Graph *graph, std::set< node > &subGraph)
- TLP_SCOPE Graph * inducedSubGraph (Graph *, const std::set< node > &, std::string name="induced subgraph")
- TLP_SCOPE void updateGroupLayout (Graph *graph, Graph *cluster, node metanode)
Function Documentation
TLP_SCOPE node tlp::createMetaNode |
( |
Graph * |
graph, |
|
|
std::set< node > & |
subGraph |
|
) |
|
|
|
Function to close a subgraph into a metanode. Edges from nodes in the subgraph to nodes outside the subgraph are replaced with edges from the metanode to the nodes outside the subgraph. Version for backwards compatibility with groupUnderSubGraph set to graph->getSuperGraph(), multiEdges set to true, metaInfo set to viewMetaGraph, and delAllEdge set to true. |
TLP_SCOPE node tlp::createMetaNode |
( |
Graph * |
graph, |
|
|
std::set< node > & |
subGraph, |
|
|
Graph * |
groupUnderSubGraph, |
|
|
GraphProperty * |
metaInfo |
|
) |
|
|
|
Function to close a subgraph into a metanode. Edges from nodes in the subgraph to nodes outside the subgraph are replaced with edges from the metanode to the nodes outside the subgraph.
- Parameters:
-
| graph | The graph where the meta node will be placed. |
| subGraph | The set of nodes to be contracted into a metanode. |
| groupUnderSubgraph | The subgraph where the groups are placed. |
| metaGraphProperty | The metagraph property used to associate the subgraph to the new metanode. |
|
TLP_SCOPE Graph* tlp::inducedSubGraph |
( |
Graph * |
, |
|
|
const std::set< node > & |
, |
|
|
std::string |
name = "induced subgraph" |
|
) |
|
|
|
Return a subgraph induced by a set of nodes |
TLP_SCOPE void tlp::openMetaNode |
( |
Graph * |
graph, |
|
|
node |
n |
|
) |
|
|
|
Function to open a metanode and replace all edges between that meta node and other nodes in the graph. Provided for backwards compatability with groupUnderSubGraph set to graph->getSuperGraph(), and metaGraphs set to viewMetaGraph. |
TLP_SCOPE void tlp::openMetaNode |
( |
Graph * |
graph, |
|
|
node |
metaNode, |
|
|
Graph * |
groupUnderSubGraph, |
|
|
GraphProperty * |
metaGraphProperty |
|
) |
|
|
|
Function to open a metanode and replace all edges between that meta node and other nodes in the graph.
- Parameters:
-
| graph | The graph where the metanode is contained and where the subgraph will be replaced. |
| n | The meta node to open. |
| groupUnderSubgraph | The subgraph where the groups are placed |
| metaGraphProperty | The metagraph property used to associate the subgraph to metanodes |
|
TLP_SCOPE void tlp::updateGroupLayout |
( |
Graph * |
graph, |
|
|
Graph * |
cluster, |
|
|
node |
metanode |
|
) |
|
|
|
Update the layout of metanode in cluster according to the layout of underlying nodes in graph |
|
