Graph.h File Reference

#include <iostream>
#include <string>
#include <hash_map>
#include <climits>
#include "tulipconf.h"
#include "Reflect.h"
#include "PluginContext.h"
#include "PluginProgress.h"
#include "Node.h"
#include "Edge.h"
#include "ObservableGraph.h"
#include "cxx/Graph.cxx"

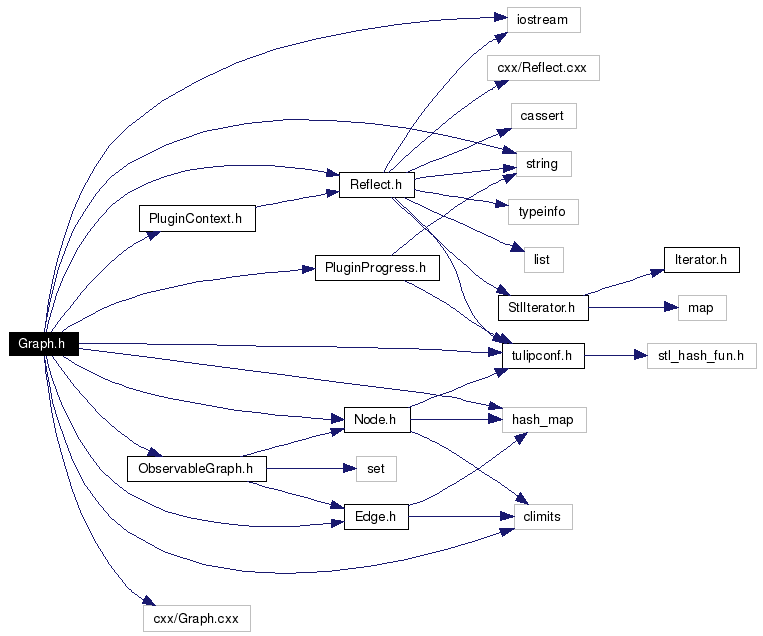

Include dependency graph for Graph.h:

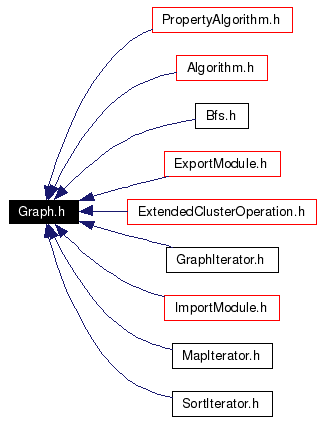

This graph shows which files directly or indirectly include this file:

Namespaces

  • namespace tlp

Enumerations

Functions

  • TLP_SCOPE Graph * loadGraph (const std::string &filename)
  • TLP_SCOPE bool saveGraph (Graph *, const std::string &filename)
  • TLP_SCOPE Graph * importGraph (const std::string &alg, DataSet &dataSet, PluginProgress *plugProgress=0, Graph *newGraph=0)
  • TLP_SCOPE bool exportGraph (Graph *graph, std::ostream &os, const std::string &alg, DataSet &dataSet, PluginProgress *plugProgress=0)
  • TLP_SCOPE bool applyAlgorithm (Graph *graph, std::string &errorMsg, DataSet *dataSet=0, const std::string &alg="hierarchical", PluginProgress *plugProgress=0)
  • TLP_SCOPE Graph * newGraph ()
  • TLP_SCOPE Graph * newSubGraph (Graph *, std::string name="unnamed")
  • TLP_SCOPE Graph * newCloneSubGraph (Graph *, std::string name="unnamed")
  • TLP_SCOPE bool getSource (Graph *, node &n)
  • TLP_SCOPE void copyToGraph (Graph *outG, Graph *inG, BooleanProperty *inSelection=0, BooleanProperty *outSelection=0)
  • TLP_SCOPE void removeFromGraph (Graph *ioG, BooleanProperty *inSelection=0)
  • TLP_SCOPE std::ostream & operator<< (std::ostream &, const tlp::Graph *)
    Print the graph (only nodes and edges) in ostream, in the tulip format.

Enumeration Type Documentation

enum tlp::ElementType


Enumeration values:
NODE
EDGE


Function Documentation

TLP_SCOPE bool tlp::applyAlgorithm Graph *  graph,
std::string &  errorMsg,
DataSet *  dataSet = 0,
const std::string &  alg = "hierarchical",
PluginProgress *  plugProgress = 0


TLP_SCOPE void tlp::copyToGraph Graph *  outG,
Graph *  inG,
BooleanProperty *  inSelection = 0,
BooleanProperty *  outSelection = 0


Append the selected part of the graph inG (properties, nodes & edges) into the graph outG. If no selection is done (inSel=NULL), the whole inG graph is appended. The output selection is used to select the appended nodes & edges

Warning:
The input selection is extended to all selected edge ends.

TLP_SCOPE bool tlp::exportGraph Graph *  graph,
std::ostream &  os,
const std::string &  alg,
DataSet &  dataSet,
PluginProgress *  plugProgress = 0


TLP_SCOPE bool tlp::getSource Graph *  ,
node &  n


find the first node of degree 0, if no node exist return false else true

TLP_SCOPE Graph* tlp::importGraph const std::string &  alg,
DataSet &  dataSet,
PluginProgress *  plugProgress = 0,
Graph *  newGraph = 0


TLP_SCOPE Graph* tlp::loadGraph const std::string &  filename  )


Load a graph in the tlp format Warning : this function use "tlp" import plugin (must be laoded)

TLP_SCOPE Graph* tlp::newCloneSubGraph Graph *  ,
std::string  name = "unnamed"


Return a subgraph equal to the graph given in parameter (a clone subgraph)

TLP_SCOPE Graph* tlp::newGraph  )


Returns a new graph

TLP_SCOPE Graph* tlp::newSubGraph Graph *  ,
std::string  name = "unnamed"


Return an empty subgraph

TLP_SCOPE std::ostream& operator<< std::ostream &  ,
const tlp::Graph


Print the graph (only nodes and edges) in ostream, in the tulip format.

TLP_SCOPE void tlp::removeFromGraph Graph *  ioG,
BooleanProperty *  inSelection = 0


Remove the selected part of the graph ioG (properties, nodes & edges). If no selection is done (inSel=NULL), the whole graph is reseted to default value.

Warning:
The selection is extended to all selected edge ends.

TLP_SCOPE bool tlp::saveGraph Graph *  ,
const std::string &  filename


Save a graph in tlp format Warning : this function use "tlp" export plugin (must be laoded)
